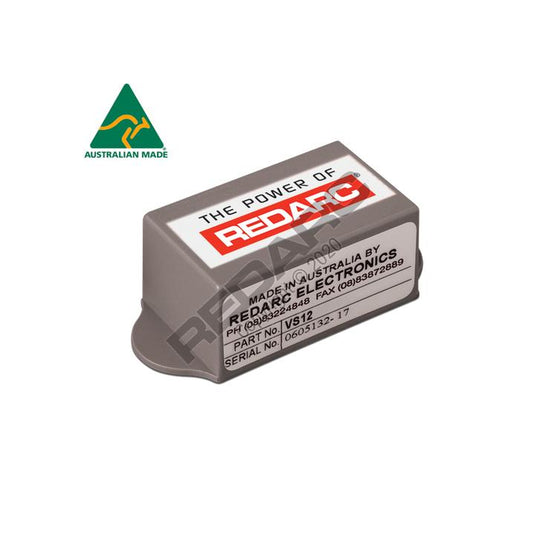

REDARC 12V 10A Voltage Sense Relay - VS12

REDARC 12V 10A Voltage Sense Relay - VS12. A voltage sensitive relay module is a control system for 12 volt and 24 volt applications. Suitable for mobile or stationary installations and feature user customisable voltage level settings. Ideal for uses as a low voltage disconnect for loads such as car fridges or could also be used as a low voltage alarm trigger or controller. Customised to suit any required application at time of manufacture as they feature a programmable microprocessor which can be set to switch at any required voltage, current, frequency or count.

Features:

• Easily-adjustable trigger voltage level setting.
• Operates like a standard changeover relay.
• Easily customisable to user’s specifications.
• Prevents over discharge of your battery.
• Prevents surges from damaging sensitive equipment.
• Easy to set up and install.
• Perfect for low or high voltage cut-off applications.
• 2 year warranty.

Specifications:

• Input Voltage: 12V DC.
• Output Voltage: 12V DC.
• Max. Rated Output Current: 10A.
• Dimensions:
  • Height (mm): 24
  • Width (mm): 30
  • Depth/Length (mm): 75
  • Weight (g): 70
