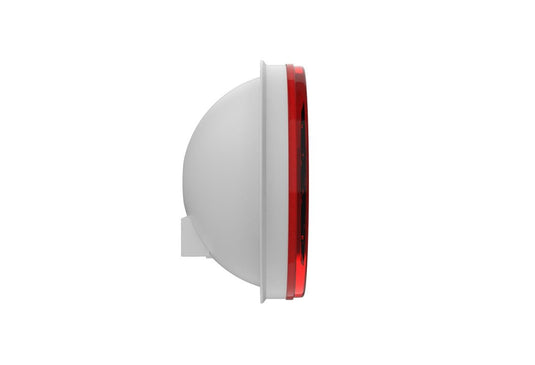

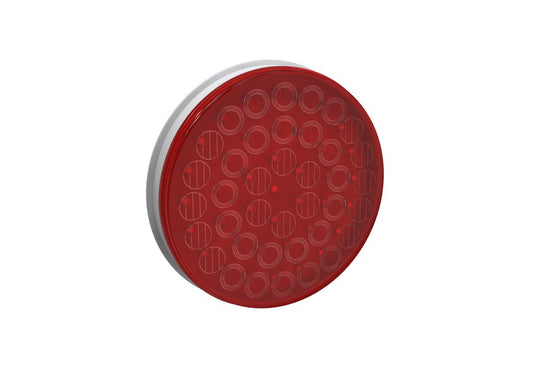

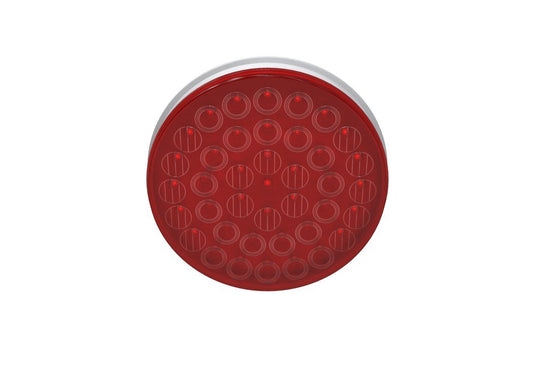

AP10501. Red - Stop/Tail. Equivalent in dimension to the popular sealed lighting systems. These lamps offer a simple retro-fit to LED. Polycarbonate construction multi-volt circuitry and 40 LEDs per lamp ensure outstanding performance.
Lamps can be flush mounted into rubber grommets (AP10507) or a stainless steel flange (AP10506) to be bought separately.
Number of LEDs : 40
Lens Material : Polycarbonate
Bracket/Housing : ABS Plastic
Voltage : 10-30V
Current Draw : 0.3A Tail, 0.18A Stop.
Barcode : 9333938000318
Grommet Hole Cut Out Diameter : 114mm, Light Diameter : 109mm, Height : 53mm.
If LOK 3 Pin Plug Is Required, Please Order AP10509.
