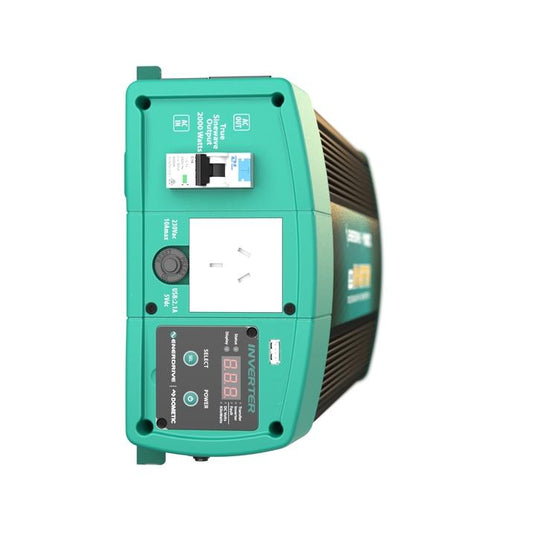

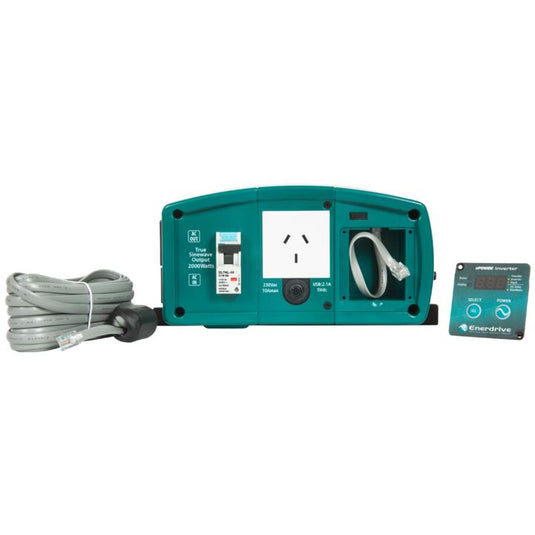

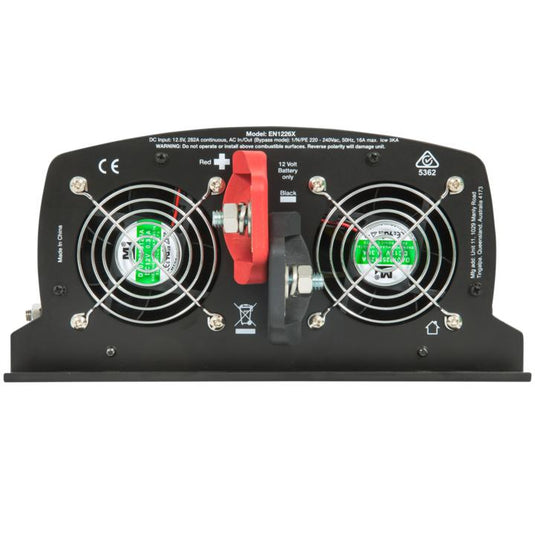

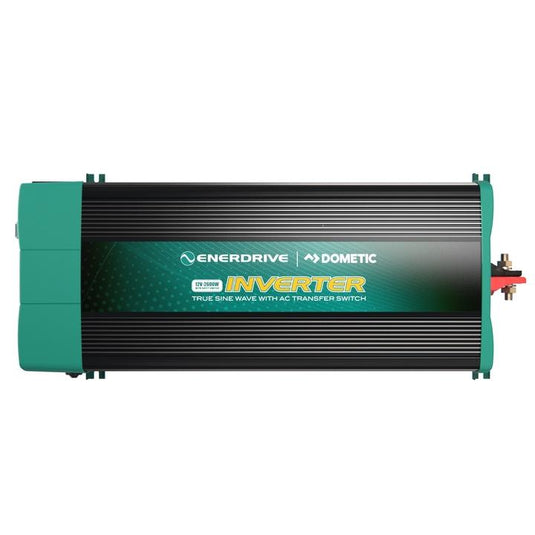

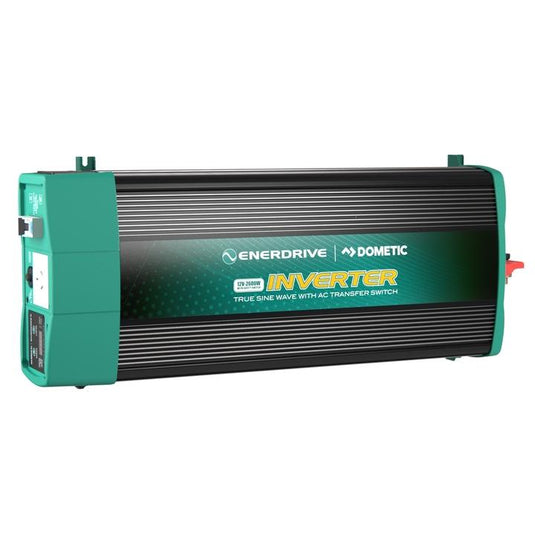

Enerdrive 2600W 12V True Sine Wave Inverter with AC Transfer & Safety Switch

Enerdrive 2600W 12V True Sine Wave Inverter with AC Transfer & Safety Switch. A true sine wave inverter to deliver power to sensitive equipment (e.g. power tools, computers, microwave ovens, televisions and other appliances that use up to 2600W of power for operation). A true sine wave inverter minimises the risk of damaging sensitive equipment you need on the road. Incorporates a 16A AC transfer switch to keep your appliances running with almost no break time on AC transfer, for seamless AC power transfer between mains/generator and inverter. Allowing simple installation on-board. A RCD safety switch unit is included that can monitor the flow of electricity through the inverter and detects any problems that may pose a risk to a personal safety. Enjoy moments that matter with a peace of mind, with Enerdrive | Dometic to keep you connected and powered, no matter where your journey takes you.

Features:

• Seamless 16A AC internal transfer switch.
• AC RCD/Safety switch with test button.

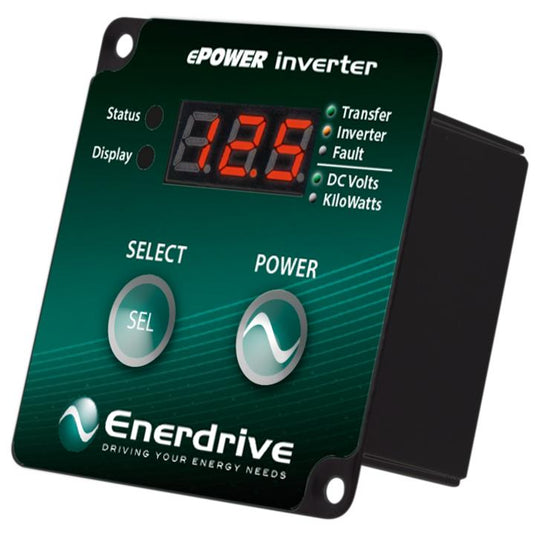

• Removable LED remote control display panel.
• Regulated pure sine wave output.
• Silent operation.
• Compact size for easy installation.
• USB Port for charging USB devices.

Specifications:

• AC Output Power: 2600W.
• AC Output Current: 11.3A.
• AC Output Voltage: 230 Vac / 50 Hz.
• AC Output Waveform: Sinewave (<3% THD).
• Nominal DC Input Voltage: 12.5 VDC.
• No Load battery draw: <1.5 ADC.
• DC Input Voltage operating range: 10.5-15.5 VDC.
• Under Voltage Alarm: 11.0/12.1 VDC.
• Under Voltage Alarm Recovery: 11.3/12.3 VDC.
• Under Voltage Shutdown: 10.5/11.8 VDC.
• Under Voltage Shutdown Recovery: 12.0/12.6 VDC.
• Over Voltage Shutdown: 15.5 VDC.
• USB Port: 5V, 2.1A.
• AC Transfer Switch:
  • Transfer Time: <30ms.
  • Transfer Relay Rating: 16A (resistive load).
  • AC Input socket IEC-C20: 16A max.
  • AC Output socket IEC-C19: 16A max.
  • AC Output Front GPO: 10A max.
• Safety and Environmental:
  • Conformance: All required Australian Standards, CE LVD: EN/IEC 62040-1, IEC61558-2-16.
  • EMI / EMC: CE EMC: EN/IEC 62040-2 category C1.
  • Agency Markings: RCM , CE.
  • Operating Temperature: 0°C to 40°C.
  • Storage Temperature: -20°C to 60°C.
  • Relative Humidity: 5-90% non-condensing.
  • Operating Altitude: Up to 3000 meters above sea level.
• 5 year warranty.
• Note: Specifications subject to change without notice.
• Important: Power Drain from DC Battery Bank. Please note that there is a power drain of approx 700mA from the battery bank when the inverter is running in AC By-Pass mode. In order to avoid draining down the battery bank, a battery charger with sufficient power is required to maintain the battery bank voltage.

Dimensions:

• Dimensions (mm): 560 (W)x 230 (L)x 115 (H).
• Weight (kg): 7.0.
