Enerdrive Smart Charger 30A 24V

Enerdrive

SKU: EN32430

$1,046.00
$1,046.00
Sale Sold out
/
(includes GST) Delivery calculated at checkout.
Available for pre-order. We will ship it once it is back in stock.
In stock and ready for Delivery/Fitting/Pick-up

Fast Delivery with Startrack Express

We can fit your products to your vehicle for you

Pick Up Available from Keysborough, VIC

Pairs well with

Enerdrive 24V 30A AC Battery Charger

Enerdrive 24V 30A AC Battery Charger. A automatic battery charger that uses algorithms to quickly charge batteries with accuracy to help maximise service life. Enjoy moments that matter with a peace of mind, with Enerdrive | Dometic to keep you connected and powered, no matter where your journey takes you.



Features:

  • Multistage Charging: Fully automatic multistage battery charger with the ability to charge 3 separate battery banks.
  • Separate Battery Banks: Isolated charging design where battery bank one is separate from battery bank two and three.
  • Programmable: Battery bank 1 can be programmed with a different charge algorithm over banks 2 and 3.
  • Current Control: User adjustable current output (e.g. Dial the 60amp unit back to run off a 1kVA generator).
  • Smart Charging: The 30A battery charger will regulate its output based on the loads connected to your battery banks.
  • Wide AC Input Range: Operates on both 110V / 60Hz and 240V / 50Hz.

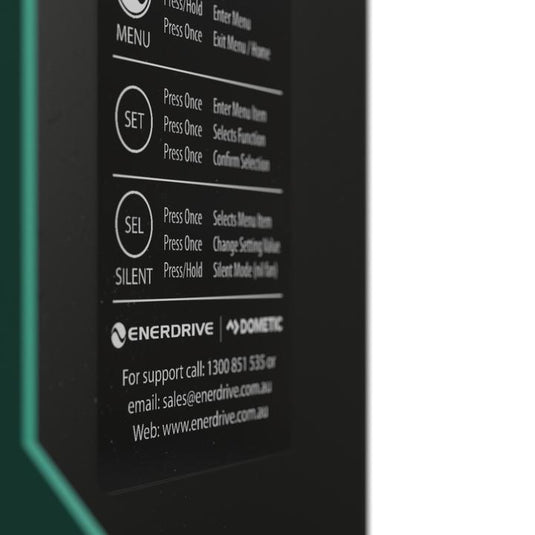

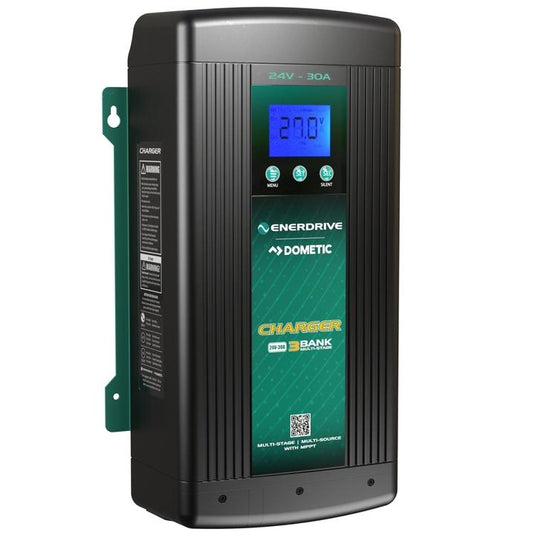

  • LED Display: Easy to use “set and select” menu along with scrolling charger status.
  • Silent Mode: Disables the cooling fan for total silent operation at night or whenever required. Activation reduces charge output by half and locks out fan for 12 hours.

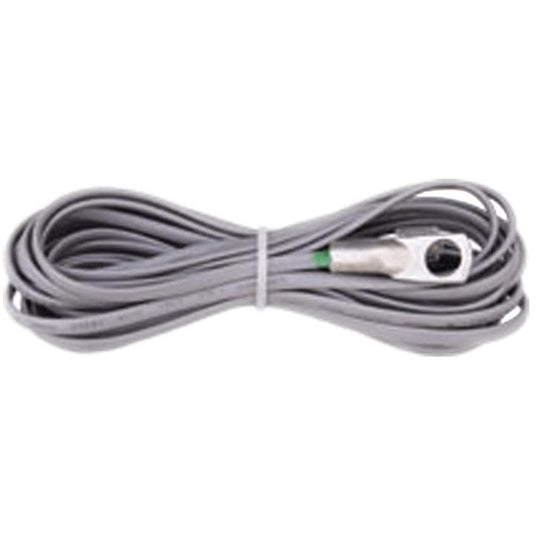

  • Temperature Sensor: Battery temperature sensor included with 7.5m cable.
  • 5 year warranty.



Specifications:

  • Charger Output Current (Maximum): 30A.
  • Output Voltage Range:
    • Charge: 28.4 – 31.0V.
    • Float: 26.8 – 27.6V.
    • Equalize: 32.0V.
  • Charging control:
    • Four stages (Bulk/Absorption/Float/Maintenance).
    • Two stages (Bulk/Absorption).
    • Constant Power Supply (Program setting).
    • Priority Battery Bank Charging.
  • DC Output Bank: Three (1 fully independent, 2 common with diode isolation).
  • Selectable Battery Type: Gel, AGM, Flooded, Lithium, Program (Flooded Default).
  • Standby Current: <2 mA.
  • Charger input:
    • AC Input Voltage (Nominal): 100,120,220,230,240 VAC.
    • AC Input Operating Range: 207-265 VAC (5.9A Max)
      90-125 VAC (11.3A Max).
    • AC Input Frequency Range: 47 – 63 Hz.
    • Power Consumption: 1050W (Full Load).
    • Power Factor Correction: Yes.
    • Charger Efficiency: >82%.
  • Protection and Features:
    • Reverse Polarity: Yes, (with user replaceable fuse/s).
    • Over Charge: Yes, unit shutdown.
    • Over Temperature: Yes, unit de-rated and shutdown.
    • Output Short Circuit: Yes, (with user replaceable fuse/s).
    • Cooling: Forced air ventilation (thermo controlled fan).
    • Temperature Setting: Hot, Normal, Cold (no sensor connected).
    • Battery Temp Sensor Port: RJ12 (standard battery temp. Sensor supplied).
  • Display:
    • LCD Display (with back light): Charging status, Battery Voltage, Output Current & Fault Codes.

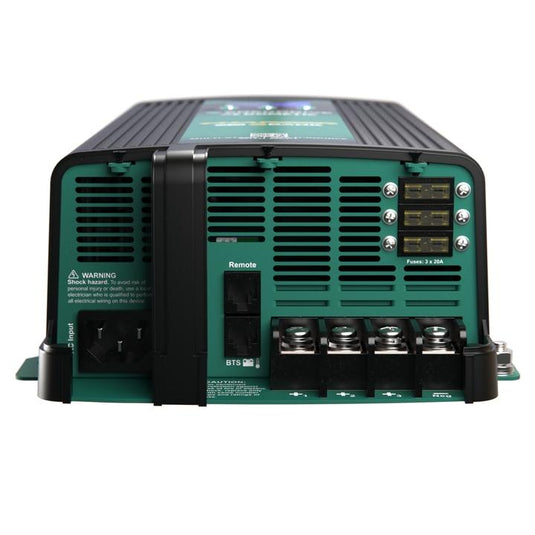

  • AC Input and DC Output Connection:
    • AC Input Connection: IEC with Supplied 1.2M Power Lead.
    • DC Output Connection: Heavy Duty Terminal (3 banks) – Pan Heads 6mm Thread.
    • DC Output Ground: Single Heavy Duty Common Ground Stud.
  • Environmental and Operating Temperature:
    • Storage Range: -40° to 70° C.
    • Operating Range: -20° to 60° C.
    • Humidity: 5-95%, relative humidity non-condensing.
    • Ingress Protection: IP32 (Basic drip proof in vertical orientation).
  • Complies with AS/NZS 60335.2.29 Including Australian deviations.
  • Note: Specifications subject to change without notice.



Dimensions:

  • Dimensions (mm): 356 (L)x 206 (W)x 99 (H).
  • Weight (kg): 4.
