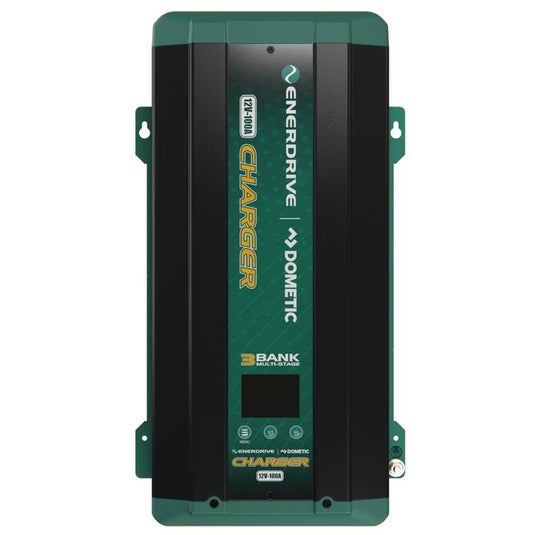

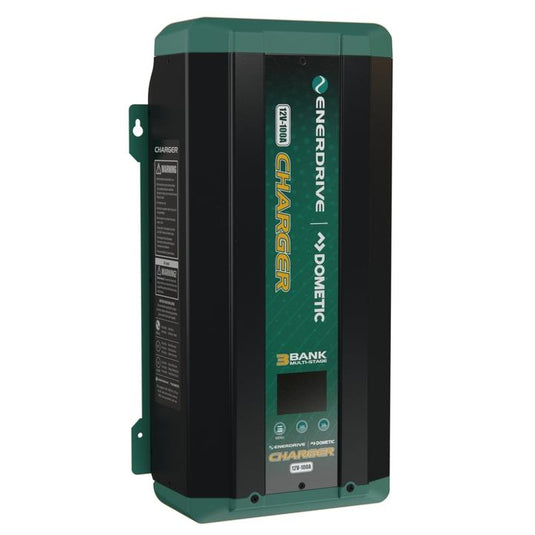

Enerdrive 12V 100A Battery Charger

Enerdrive 12V 100A Battery Charger. A automatic battery charger that uses algorithms to quickly charge batteries with accuracy to help maximise service life. Enjoy moments that matter with a peace of mind, with Enerdrive | Dometic to keep you connected and powered, no matter where your journey takes you.

Features:

• Multistage Charging: Fully automatic multistage battery. charger with the ability to charge 3 separate battery banks.
• Separate Battery Banks: Isolated charging design where battery bank one is separate from battery bank two and three.
• Programmable: Battery bank 1 can be programmed with a different charge algorithm over banks 2 and 3.
• Current Control: User adjustable current output (e.g. Dial the 100amp unit back to run off a 1kVA generator).
• Smart Charging: The 100A battery charger will regulate its output based on the loads connected to your battery banks.
• Wide AC Input Range: Operates on both 110V / 60Hz and 240V / 50Hz.

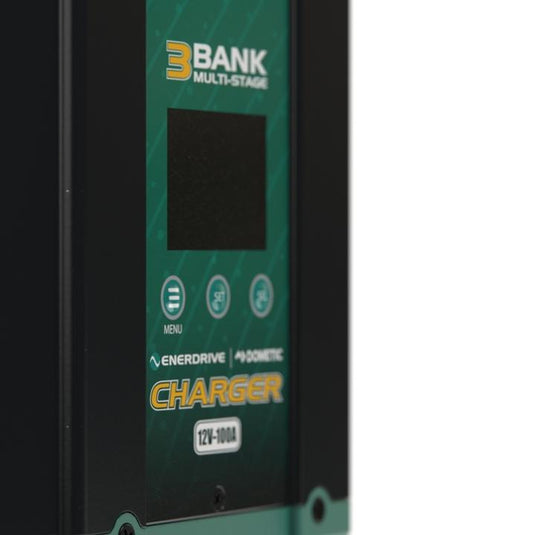

• LED Display: Easy to use “set and select” menu along with scrolling charger status.
• Silent Mode: Disables the cooling fan for total silent operation at night or whenever required. Activation reduces charge output by half and locks out fan for 12 hours.

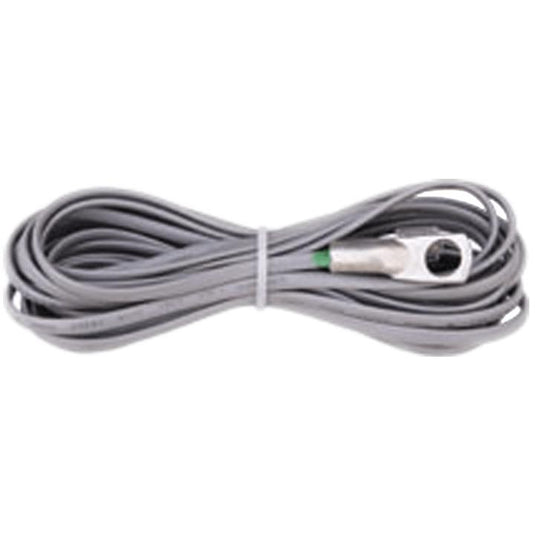

• Temperature Sensor: Battery temperature sensor included with 7.5m cable.

Specifications:

• Charger Output Current (Maximum): 100A.
• Output Voltage Range:
  • Charge: 14.2 – 15.5V.
  • Float: 13.4 – 13.8V.
  • Equalize: 15.5V.
• Charging control:
  • Four stages (Bulk/Absorption/Float/Maintenance).
  • Two stages (Bulk/Absorption).
  • Constant Power Supply (Program setting).
  • Priority Battery Bank Charging.
• DC Output Bank: Three (1 fully independent, 2 common with diode isolation).
• Selectable Battery Type: Gel, AGM, Flooded, Lithium, Program (Flooded Default).
• Standby Current: <5 mA.
• Charger input:
  • AC Input Voltage (Nominal): 100,120,220,230,240 VAC.
  • AC Input Operating Range: 207-265 VAC (7.6A Max)
    90-125 VAC (15.9A Max).
  • AC Input Frequency Range: 47 – 63 Hz.
  • Power Consumption: 1750W (Full Load).
  • Power Factor Correction: Yes.
  • Charger Efficiency: >82%.
• Protection and Features:
  • Reverse Polarity: Yes, (with user replaceable fuse/s).
  • Over Charge: Yes, unit shutdown.
  • Over Temperature: Yes, unit de-rated and shutdown.
  • Output Short Circuit: Protected, charger shutdown.
  • Cooling: Forced air ventilation (thermo controlled fan).
  • Temperature Setting: Hot, Normal, Cold (no sensor connected).
  • Battery Temp Sensor Port: RJ12 (standard battery temp. Sensor supplied).

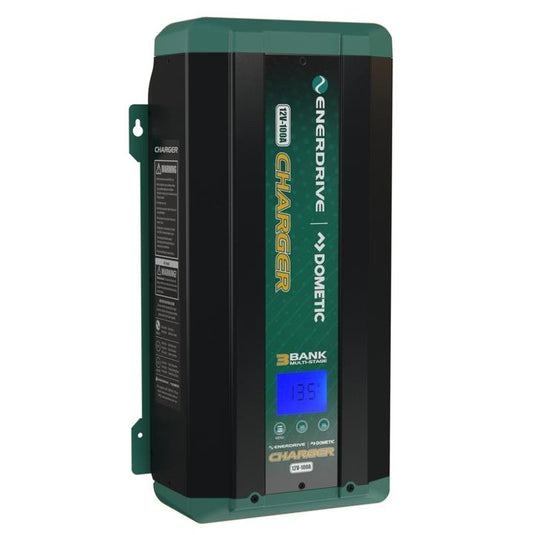

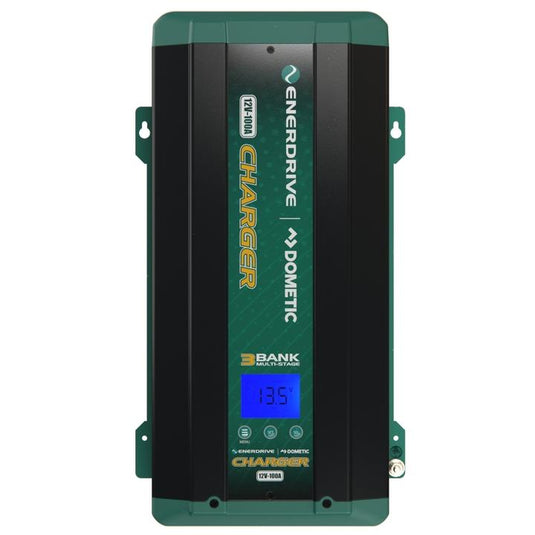

• Display:
  • LCD Display (with back light): Charging status, Battery Voltage, Output Current & Fault Codes.

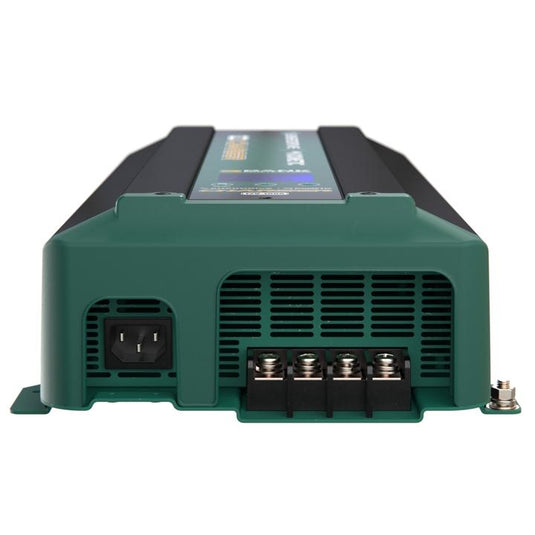

• AC Input and DC Output Connection:
  • AC Input Connection: IEC with Supplied 1.2M Power Lead.
  • DC Output Connection: Heavy Duty Terminal (3 banks) – Hex Nuts 8mm Thread.
  • DC Output Ground: Single Heavy Duty Common Ground Stud.
• Environmental and Operating Temperature:
  • Storage Range: -40° to 70° C.
  • Operating Range: -20° to 60° C.
  • Humidity: 5-95%, relative humidity non-condensing.
  • Ingress Protection: IP32 (basic drip proof in vertical orientation).
• 5 year warranty.
• Regulatory Compliance: Complies with AS/NZS 60335.2.29 Including Australian deviations.
• Note: Specifications subject to change without notice.

Dimensions:

• Dimensions (mm): 425 (L)x 236 (W)x 102.7 (H).
• Weight (kg): 6.4.
