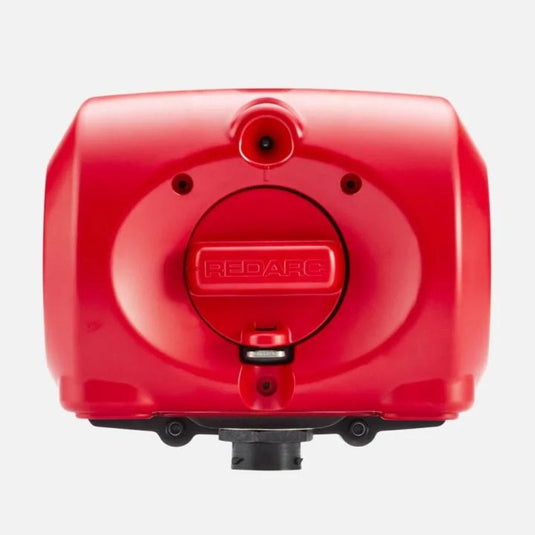

REDARC Battery Master Isolation Switch - 4PP - BMIS4PPV2KIT

REDARC Battery Master Isolation Switch - 4PP - BMIS4PPV2KIT. Designed to isolate vehicle batteries safely, ensuring reliable performance while the vehicle is operating. For use in heavy vehicles with dual start cables. Reduces flat battery faults by having no loads drawn when the vehicle is not in use. Meets and exceeds the requirements of large diesel engines in 12 and 24 volt systems with an ISO 26262 rated dual redundancy system to avoid false triggering. Fitted as OE at Kenworth is now available for heavy vehicle applications. A BMIS-AP adaptor plate is recommended for retrofitting installations.

Features:

• Rated IP66, IP67 & IP69K.
• Dual redundancy feature to avoid false triggering.
• Continuous self-checking function.
• In-built lockout capability.
• In-built diagnoses from external looms and remote actuating devices.
• Compatible with existing roll-over sensors.
• Reviewed by independent heavy vehicle experts.
• Durable, UV resistant housing, resistant to rocks and water.
• Easy to install from new or as a retrofit.
• 2 year warranty.
• Input voltage: 9V to 32V (12V or 24V systems).
• Dimensions:
  • Height (mm): 188
  • Width (mm): 158
  • Depth/Height (mm): 218
  • Weight (kg): 3.5

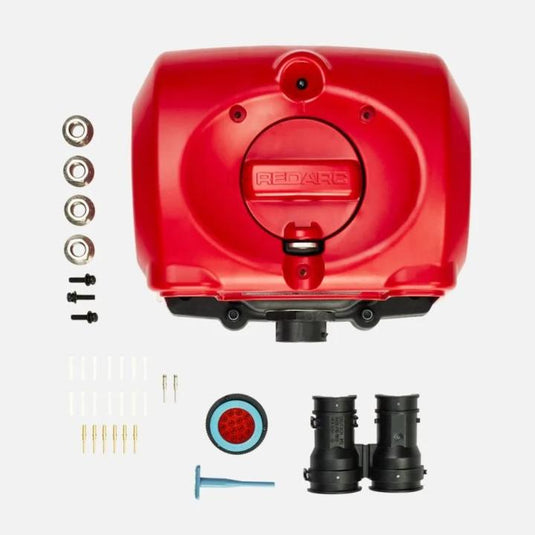

Included in the box:

• REDARC Battery Master Isolation Switch.
• BMIS-CK connector kit:
  • Connector.
  • HDP20 Backshell straight.
  • Terminal 16-20AWG.
  • Terminal 14AWG.
  • Sealing plugs.
  • HDP20 Contact removal tool.
